Eaglerock 5C Air Collet Fixtures

CHANGE SIZES IN AN INSTANT!

TOLL FREE 888-869-2424
SELF-CONTAINED AIR ACTUATED JAW CHUCKS AND COLLET CHUCKS


CALL TOLL FREE (888-869-2424) TO PLACE CREDIT CARD ORDERS

.0005" REPEATABLE
ACCURACY

HOME

5C Air Collet Fixture

For use with standard Hardinge® 5C Collets

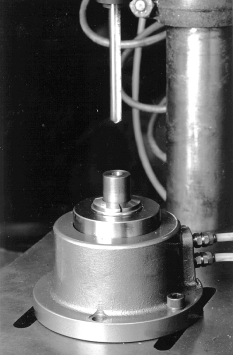

SERIES A1-212: Designed especially for high production applications. Their light weight and compact size permits the use of several units on indexing tables for custom applications or used individually for fast chucking of parts on milling machines and drill press.
Air operation is double acting for "Power" opening and closing of collet. The collet is locked into position for positive depth location of work. These units operate efficiently and effectively on air pressure up to 150 PSI with upward 7.5 times line pressure. All bearings and moving parts are hardened and precision ground for accuracy and long life.

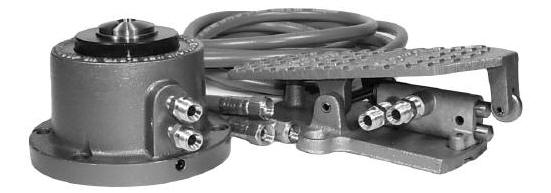

FIXTURE PICTURED HERE WITH OPTIONAL FOOT VALE KIT (A1-212-5C-K)
